Stainless Steel Polished Pipe Manufacturer in India
Stainless Steel Polished Pipe Manufacturer in India
Sachiya Steel International is a leading Stainless Steel Polished Pipe Manufacturer in India, with experience in serving diverse industrial requirements since 2005. We supply stainless steel polished pipes in different grades, sizes, and surface finishes to meet the needs of industrial, commercial, and architectural projects. Our focus on quality, material specifications, and finishing helps us deliver products suited to a wide range of applications.
With ISO 9001:2015 and TÜV certifications, we follow established quality procedures and provide material documentation to support product traceability. Our product range covers stainless steel pipes, tubes, fittings, flanges, and other steel products. We serve domestic and international markets, supporting applications across industries such as construction, chemical processing, pharmaceuticals, and engineering. Our commitment to quality and dependable service guides every stage of supply.
What Is Stainless Steel Polished Pipe?
Stainless Steel Polished Pipe is a stainless steel pipe with a smooth, refined surface achieved through mechanical polishing or electropolishing. Depending on the application, it can feature a satin, brushed, or mirror finish on the outer surface, with inner surface polishing available where required. This finishing process improves the pipe’s appearance and makes cleaning easier by reducing surface irregularities where dirt and residue can collect. These pipes are widely used in architectural projects, food processing, pharmaceutical equipment, and industrial applications that require a clean finish and good corrosion resistance.

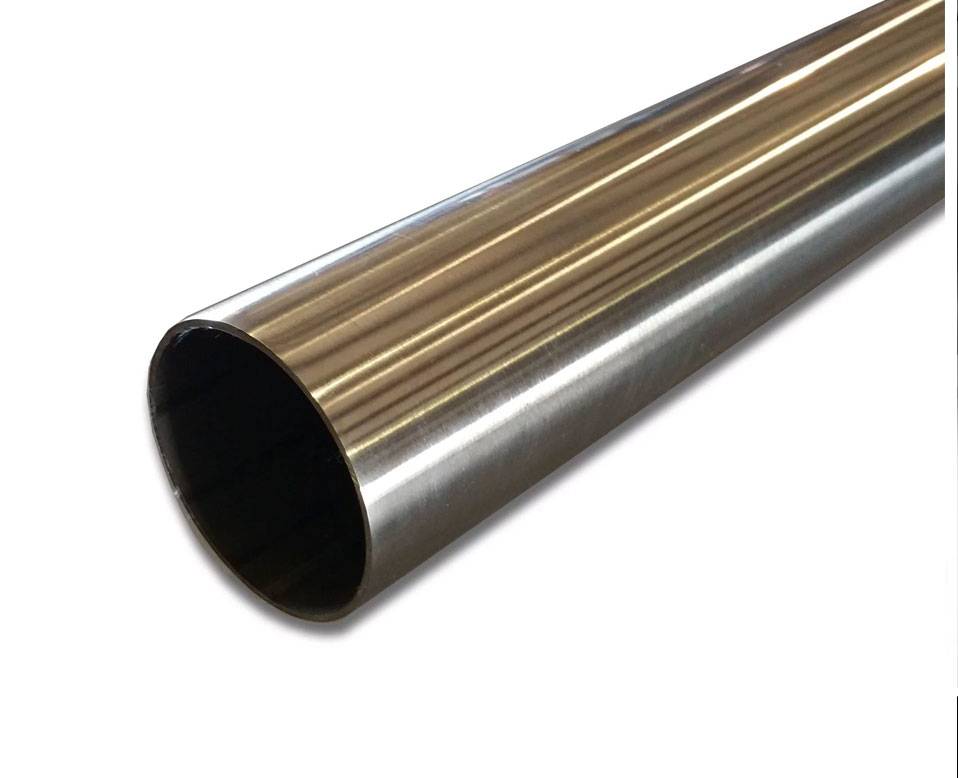

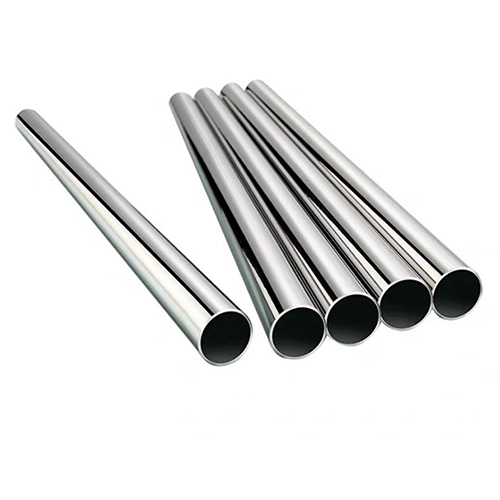

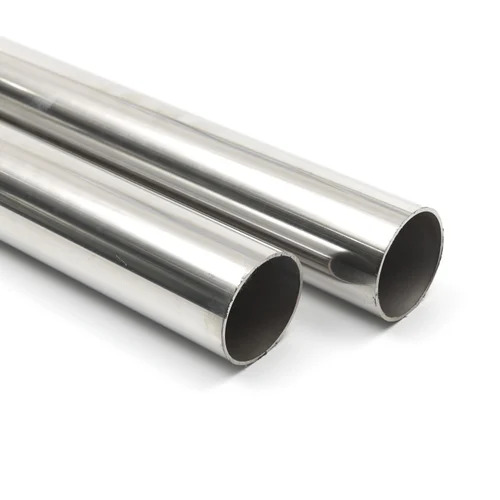

Stainless Steel Polished Pipe
High-quality Stainless Steel Polished Pipes manufactured for demanding applications across architectural, pharmaceutical, food processing, chemical, marine and engineering industries. Available in various grades, sizes, wall thicknesses and finishes, including mirror, satin and brushed polish, to meet diverse industrial and decorative requirements.
Why Choose Stainless Steel Polished Pipe?
Stainless Steel Polished Pipes combine an attractive surface finish with durability and corrosion resistance, making them suitable for decorative and industrial applications. Their smooth finish supports easier cleaning and helps maintain a neat appearance in environments where hygiene and surface quality matter.
- Smooth Surface Finish: Available in satin, brushed, and mirror finishes to suit different design and application needs.
- Corrosion Resistance: Stainless steel helps resist rust and corrosion when the correct grade is selected for the operating environment.
- Easy Maintenance: Smooth surfaces make routine cleaning easier and help reduce the buildup of dirt and residue.
- Long Service Life: Durable construction supports reliable use under suitable operating conditions.
- Versatile Applications: Commonly used in architectural structures, food processing equipment, pharmaceutical facilities, furniture, and industrial systems.
- Customised Options: Available in different grades, sizes, thicknesses, and finishes to meet project specifications.
Choosing the right polished pipe depends on the required appearance, stainless steel grade, operating conditions, and intended use. The right combination helps deliver a balance of finish, performance, and durability.
Types of Stainless Steel Polished Pipe
As a Stainless Steel Polished Pipe Manufacturer, we offer a range of polished pipes with different surface finishes, sizes, and shapes to meet industrial, architectural, and decorative requirements. Our products are available for various applications where surface quality, durability, and appearance matter.
- Satin Polished Pipes: Feature a brushed finish that helps reduce the visibility of fingerprints and minor scratches.
- Mirror Polished Pipes: Have a bright, reflective surface suitable for architectural structures, interiors, and decorative projects.
- Electropolished Pipes: Feature an electrochemically smoothed surface for applications that require high cleanliness and easy maintenance.
- Sanitary Polished Pipes: Suitable for food, dairy, and beverage processing systems where hygiene is essential.
- Seamless Polished Pipes: Manufactured without a welded seam for applications requiring specific pressure performance and a polished finish.
- Welded Polished Pipes: Feature a finished weld area that creates a more uniform surface appearance.
- Decorative Polished Pipes: Available in round, square, and rectangular profiles for railings, furniture, and interior designs.
We manufacture and supply polished pipes in different grades and specifications to suit project requirements, with options for domestic supply and international exports.
Types of Pipes & Tubes
Explore our range of industrial pipes and tubes, manufactured for different applications, materials, specifications and engineering requirements.
Pipes and Tubes
→
Seamless Pipes
→
ERW Pipes
→
LSAW Pipes
→
SSAW Pipes
→
Seamless Tubes
→
Welded Pipes
→
Welded Tubes
→
Box Pipes
→
Box Tubes
→
Brass Pipes
→
Heat Exchanger Tubes
→
Boiler Tubes
→
Aluminium Pipes
→
Carbon Steel Seamless Pipes
→
Carbon Steel Pipe
→
Stainless Steel Pipe
→
Alloy Steel Pipe
→
Duplex Steel Pipe
→
Super Duplex Steel Pipe
→
Nickel Alloy Pipe
→
Copper Nickel Alloy Pipe
→Get Certified Stainless Steel Polished Pipe at Competitive Factory Prices
Stainless Steel Polished Pipe Specifications
| Parameter | Details |
|---|---|
| Material | Stainless steel 304, 304L, 316, 316L |
| Product forms | Seamless, ERW, TIG welded, EFW |
| Pipe size | ⅛" NPS to 24" NPS |
| Tube and pipe OD (round) | 12.7 mm to 203.2 mm |
| Wall thickness | 0.8 mm to 12.7 mm |
| Shapes | Round, square, rectangular |
| Surface finish | No. 4 satin, 240 and 320 grit, mirror, electropolished |
| Polish location | Outside, inside, or both |
| Length | Single random, double random, cut length up to 12 m |
| Ends | Plain, beveled, threaded, tri-clamp prepared |
| Packing | Wrapped in protective film or paper before bundling |
| Tests | Chemical analysis, tensile, hydrotest or eddy current, PMI, Ra measurement |
| Documents | EN 10204 3.1 mill certificate, inspection reports |
Stainless Steel Polished Pipe Standards
| Standard | What it covers |
|---|---|
| ASTM A312 / ASME SA312 | Seamless and welded austenitic pipe |
| ASTM A554 | Welded stainless mechanical and ornamental tubing |
| ASTM A270 | Sanitary tubing for dairy, food and pharma |
| ASTM A269 | General service tubing |
| ASME B36.19M | Stainless pipe dimensions and schedules |
| ASME BPE | Bioprocessing equipment, including surface finish |
| EN 10357 | Welded stainless tubes for food and chemical use |
| DIN 11850 | Stainless tubes for the food and beverage industry |
Materials and Grades of Stainless Steel Polished Pipe
We manufacture and supply Stainless Steel Polished Pipes in different grades to meet the needs of various industrial, architectural, and hygienic applications. Each grade offers specific properties that help determine its suitability based on corrosion exposure, fabrication requirements, and surface finish.
Stainless Steel 304: Offers good corrosion resistance and a smooth finish, making it suitable for handrails, kitchens, food processing equipment, and indoor installations.
Stainless Steel 304L: Its low carbon content makes it a suitable choice for applications involving extensive welding.
Stainless Steel 316: Contains molybdenum, which improves resistance to chlorides and many corrosive environments. It is commonly used in coastal, marine, and outdoor applications.
Stainless Steel 316L: Combines low carbon content with good corrosion resistance, making it suitable for pharmaceutical equipment, biotechnology facilities, and hygienic systems.
The right grade depends on the working environment and intended use. Even with a high-quality polished finish, selecting a suitable stainless steel grade remains essential for maintaining corrosion resistance, appearance, and long-term performance.
Polish Grades and Surface Finishes of Stainless Steel Polished Pipe
Surface roughness is measured as Ra in micrometres. The lower the Ra, the smoother the surface. Values below are typical and vary with grade and process.
| Finish | Grit | Approx. Ra (µm) | Look | Common use |
|---|---|---|---|---|
| No. 4 satin | 150–180 | 0.4 – 1.0 | Soft linear grain | Handrails, kitchens, facades |
| Fine satin | 240 | 0.4 – 0.6 | Smooth, even grain | Food and dairy lines |
| Extra fine satin | 320 | 0.25 – 0.4 | Very fine grain | Pharma and interiors |
| Mirror (No. 8) | 400 and above, then buffed | 0.05 – 0.15 | Reflective shine | Architecture and decor |
| Electropolished | After mechanical polish | 0.2 – 0.5 | Bright, smooth, sealed | Pharma, biotech, semiconductor |
Mechanical Polish vs Electropolished Stainless Steel Pipe: Which Do You Need?
| Point | Mechanical polish | Electropolish |
|---|---|---|
| Method | Abrasive grinding and buffing | Electrochemical removal of a thin surface layer |
| Surface | Smooth, with fine directional scratches | Smoother, free of micro-scratches |
| Corrosion resistance | Good after passivation | Higher, with more chromium-rich surface |
| Cleanability | Good | Best |
| Look | Satin to mirror | Bright, uniform shine |
| Cost | Lower | Higher |
| Best for | Handrails, food, dairy, decor | Pharma, biotech, semiconductor, high-purity lines |
Choose mechanical polish for decorative work and general hygienic service. Choose electropolish when cleanability and purity are critical, or when the line carries pure water, clean steam or high-purity gas.
Stainless Steel Polished Pipe Chemical Composition
| Element | 304 (%) | 304L (%) | 316 (%) | 316L (%) |
|---|---|---|---|---|
| Carbon (C) | 0.08 max | 0.03 max | 0.08 max | 0.03 max |
| Manganese (Mn) | 2.00 max | 2.00 max | 2.00 max | 2.00 max |
| Silicon (Si) | 1.00 max | 1.00 max | 1.00 max | 1.00 max |
| Phosphorus (P) | 0.045 max | 0.045 max | 0.045 max | 0.045 max |
| Sulphur (S) | 0.030 max | 0.030 max | 0.030 max | 0.030 max |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 11.0 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.00 – 3.00 | 2.00 – 3.00 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Stainless Steel Polished Pipe Mechanical Properties
| Property | 304 / 316 | 304L / 316L |
|---|---|---|
| Tensile strength | 515 MPa min | 485 MPa min |
| Yield strength (0.2%) | 205 MPa min | 170 MPa min |
| Elongation | 35% min | 35% min |
| Hardness | 90 HRB max | 90 HRB max |
| Density | 7.93 g/cm³ (304), 7.98 g/cm³ (316) | Same as base grade |
| Magnetic response | Non-magnetic when annealed | Non-magnetic when annealed |
Stainless Steel Polished Pipe Size and Weight Chart
Theoretical weight is (OD − Wall) × Wall × 0.02491 for 304 and 304L, and × 0.02507 for 316 and 316L, giving kg per metre with dimensions in mm. Real weight varies slightly within mill tolerance.
Use factor 0.02491 for 304 / 304L and 0.02507 for 316 / 316L. OD and wall are in mm. Multiply the result by the pipe length to obtain the total weight.
Polished pipe, OD basis
| OD (mm) | Wall (mm) | 304 kg/m | 316 kg/m |
|---|---|---|---|
| 19.05 | 1.20 | 0.53 | 0.54 |
| 25.40 | 1.20 | 0.72 | 0.73 |
| 31.80 | 1.50 | 1.13 | 1.14 |
| 38.10 | 1.50 | 1.37 | 1.38 |
| 50.80 | 1.50 | 1.84 | 1.85 |
| 63.50 | 2.00 | 3.06 | 3.08 |
| 76.20 | 2.00 | 3.70 | 3.72 |
| 101.60 | 2.00 | 4.96 | 4.99 |
| 114.30 | 3.05 | 8.45 | 8.51 |
Schedule pipe (ASME B36.19M), 304
| NPS | OD (mm) | Sch 10S wall (mm) | Sch 10S kg/m | Sch 40S wall (mm) | Sch 40S kg/m |
|---|---|---|---|---|---|
| ¾" | 26.7 | 2.11 | 1.29 | 2.87 | 1.70 |
| 1¼" | 42.2 | 2.77 | 2.72 | 3.56 | 3.43 |
| 2½" | 73.0 | 3.05 | 5.31 | 5.16 | 8.72 |
| 3" | 88.9 | 3.05 | 6.52 | 5.49 | 11.41 |
| 5" | 141.3 | 3.40 | 11.68 | 6.55 | 21.99 |
Stainless Steel Polished Pipe Sizes, Dimensions and Schedules
Polished pipe comes in two kinds of sizing. Decorative and hygienic pipe is ordered by OD and wall in mm. Industrial process pipe is ordered by NPS and schedule. Both can be polished.
| OD (mm) | Common wall range (mm) | Typical use |
|---|---|---|
| 19.05 | 1.0 – 1.65 | Handrail balusters, sanitary lines |
| 25.40 | 1.0 – 2.0 | Handrails, food and dairy lines |
| 38.10 | 1.2 – 2.0 | Handrails, process lines |
| 50.80 | 1.2 – 2.5 | Railings, hygienic lines |
| 63.50 | 1.5 – 2.5 | Structural handrail posts, process |
| 76.20 | 1.5 – 3.0 | Posts, bulk process lines |
| 101.60 | 2.0 – 3.0 | Columns, larger process lines |
For schedule pipe, wall thickness follows ASME B36.19M. Typical wall tolerance is −12.5% on A312 pipe and ±10% on A554 tubing. Square and rectangular sections, custom diameters and cut lengths are made to your drawing.
Testing and Inspection of Stainless Steel Polished Pipe
| Test | Purpose |
|---|---|
| Chemical analysis | Confirms the grade is 304, 304L, 316 or 316L |
| Tensile and hardness | Checks strength, elongation and hardness |
| Surface roughness (Ra) | Measures smoothness with a profilometer, recorded on request |
| Visual inspection | Checks finish consistency, scratches, dents and weld blending |
| Hydrostatic or eddy current | Finds leaks and hidden defects |
| PMI | Confirms the alloy before dispatch |
| Passivation check | Confirms the protective film has formed after polishing |
| Dimensional check | Confirms OD, wall, length and straightness |
Common Materials Supplied with Stainless Steel Polished Pipe
We supply Stainless Steel Polished Pipes along with other stainless steel grades, tubes, fittings, and flanges to meet different project requirements. Our product range covers decorative, hygienic, and industrial applications where surface finish and material performance are important.
304 and 304L Polished Tubes: Suitable for decorative structures, food processing equipment, and applications requiring a clean surface finish.
316 and 316L Polished Tubes: Offer improved resistance to chlorides and corrosive environments, making them suitable for coastal and chemical applications.
321 Stainless Steel Pipes: Designed for applications involving elevated temperatures and thermal cycling.
Duplex 2205 Pipes: Provide high strength and good resistance to chloride-related corrosion for demanding industrial environments.
904L Pipes: Suitable for applications requiring strong resistance to many acids and aggressive chemicals.
Pipe Fittings and Flanges: We supply elbows, tees, reducers, and compatible connections to support complete piping systems.
As experienced Stainless Steel Polished Pipe Suppliers, we provide material options in different grades, sizes, and specifications to meet industrial and commercial requirements. The right combination depends on the operating environment, required finish, and application.
Applications of Stainless Steel Polished Pipe
- Architecture and Construction: Handrails, balustrades, facades, canopies and decorative columns.
- Food and Beverage: Milk, juice, beer and CIP lines with smooth, easy-to-clean walls.
- Pharmaceutical and Biotech: Purified water, WFI and clean steam systems.
- Chemical Processing: Process lines where a smooth surface cuts product build-up.
- Marine and Coastal: Deck railings, ship fittings and waterfront structures in 316.
- Hospitals and Cleanrooms: Gas lines, handrails and sanitary piping.
- Water Treatment: Potable water and distribution pipework.
- Furniture and Interiors: Frames, rails and fittings for shops, hotels and offices.
Why Choose Us as Your Stainless Steel Polished Pipe Manufacturer in India?
Established in 2005, we are a Stainless Steel Polished Pipe Manufacturer in India with ISO 9001:2015 and TÜV certifications. With a manufacturing and export capacity of up to 100 tons per month, we supply polished stainless steel pipes for industrial, commercial, and architectural applications across domestic and international markets. Our focus on product quality, surface finishing, and reliable supply helps us meet different project requirements.
We manufacture polished pipes in stainless steel grades 304, 304L, 316, and 316L, available in seamless and welded forms. Our size range extends from ⅛ inch to 24 inches, with satin, mirror, and electropolished finishes to suit different applications. Round, square, and rectangular profiles, along with custom cut lengths, matching fittings, and flanges, are available according to specifications. We also pay close attention to surface quality and can arrange roughness measurements when required.
As a Stainless Steel Polished Pipe Supplier in India, we support material traceability with EN 10204 3.1 material test certificates, while PMI testing, surface roughness reports, and third-party inspections can be arranged on request. We use suitable packaging to protect polished surfaces during transportation. With exports to more than 85 countries, we have experience handling international supply requirements, quality documentation, and export procedures for projects of different sizes.
Countries We Export Stainless Steel Polished Pipe To
As a Stainless Steel Polished Pipe Manufacturer and Supplier in India, we export to 85+ countries, serving architecture and construction, food and dairy, pharmaceutical, chemical and marine industries.
Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.
Europe: Germany, Italy, United Kingdom, Netherlands, France, Spain, Belgium and Poland.
Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan and Australia.
Americas: USA, Canada, Mexico, Brazil and Chile.
Africa: South Africa, Nigeria, Egypt and Kenya.
South Asia: Nepal, Bangladesh and Sri Lanka.
EN 10204 3.1 mill test certificates come with every order. EN 10204 3.2 certification and third-party inspection can be arranged on request. We pack each shipment to protect the polish on its route and destination, and we prepare the shipping and export documents your project requires, so international orders move cleanly from our plant to your site.
FAQs
Common questions about stainless steel polished pipe, finishes, welding, Ra values and supply.
Which finish is best for food and dairy lines?
A fine satin of 240 grit or finer, or electropolish, with Ra of 0.8 µm or lower. Both are smooth enough to clean well and meet common hygiene rules.
Is 304 or 316 better for polished pipe?
Use 304 indoors and in food lines. Use 316 near the sea, outdoors in polluted air or where chlorides are present.
Can polished pipe be welded?
Yes. Welding leaves heat marks, so the area should be ground, re-polished and passivated to restore both the look and the corrosion resistance.
What is the difference between No. 4 satin and mirror finish?
No. 4 has a soft brushed grain that hides fingerprints. Mirror finish is buffed to a reflective shine that shows every mark.
What does the Ra value mean?
Ra is the average surface roughness in micrometres. A lower number means a smoother surface that is easier to clean.
How do I calculate the weight of a polished pipe?
Use (OD − Wall) × Wall × 0.02491 for 304 and 0.02507 for 316, with both values in mm, to get kg per metre.
Which documents come with an order?
EN 10204 3.1 mill test certificates are included. Ra reports, PMI reports and third-party certificates are available on request.
Can you make custom sizes and lengths?
Yes. Special OD and wall combinations, cut lengths and end preparation are made to your drawing.
How is polished pipe packed for export?
Each length is wrapped in protective film or paper, bundled and strapped or crated. Heat numbers are marked on each bundle for traceability.
