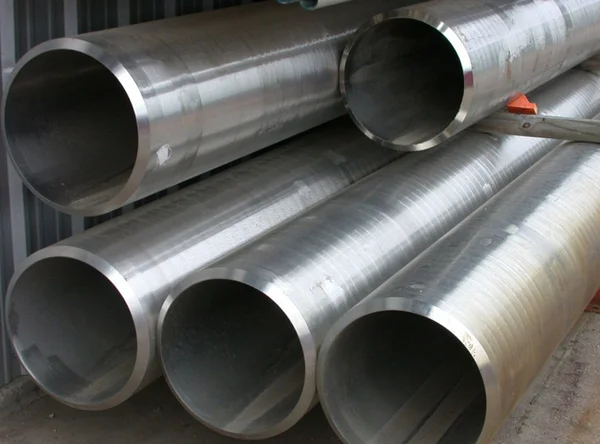

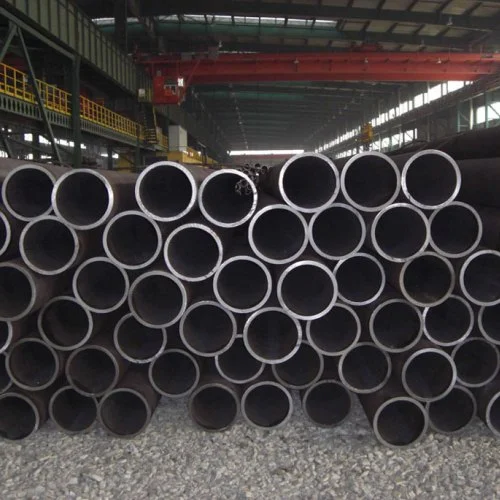

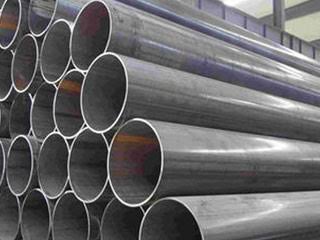

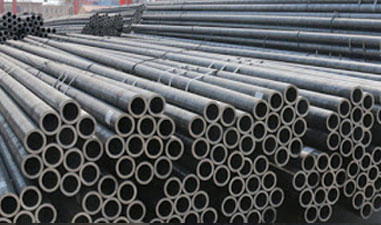

ASTM A335 P91 Alloy Steel Pipes Manufacturer in India

ASTM A335 P91 Alloy Steel Pipes Specifications

ASTM A335 P91 Alloy Steel Pipes Standards

Every lot is tested for chemistry, tensile strength, hardness and flattening, then proven with a hydrostatic test or non-destructive examination as the code demands. Hardness matters more on P91 than on other chrome-moly pipe, because it shows whether the heat treatment did its job. Positive material identification checks the alloy on the finished pipe, and a third-party inspector can witness the work.

ASTM A335 P91 Alloy Steel Pipes Material and Grades

P91 sits at the top of the standard A335 ladder in strength, and it is the grade most modern boiler designs are built around. ASTM A335 limits carbon to 0.08–0.12% and sets 8.00–9.50% chromium, 0.85–1.05% molybdenum, 0.18–0.25% vanadium and 0.06–0.10% niobium, with 0.030–0.070% nitrogen.

The small amounts of vanadium, niobium and nitrogen are the secret. Take them out and you are left with P9, which is a good pipe, but much weaker at heat.

Both Type 1 and Type 2 chemistries appear in the standard. If your specification names one, tell us when you enquire, so we can supply the right heat with the right records.

ASTM A335 P91 Alloy Steel Pipes Chemical Composition

Limits per ASTM A335 for grade P91, Type 1.

ASTM A335 P91 Alloy Steel Pipes Mechanical Properties

These are room-temperature requirements. Design codes list lower allowable stress at working temperature, so size the wall from the code tables for your actual operating temperature.

ASTM A335 P91 Alloy Steel Pipes Size and Weight Chart

Weight per metre = (OD − wall) × wall × 0.02466, with OD and wall in mm. Treat the figures as estimates, because the wall tolerance moves the real weight.

P91 steam lines often run in these heavier schedules. For other sizes and walls, we can share a complete weight chart on request.

ASTM A335 P91 vs P92 Alloy Steel Pipes

P92 is the closest alternative, and the choice usually comes down to how much more strength your design needs.

P92 starts from the same 9% chromium base but adds tungsten and reduces molybdenum. It reaches higher strength, with a minimum tensile of 620 MPa against 585 MPa for P91, and a minimum yield of 440 MPa against 415 MPa. That lets designers go a little thinner still on hot, high-pressure lines.

P91 has a much longer record in service and is the more widely stocked and specified grade. For most power plants and refineries, it gives all the strength required at a lower cost and with simpler sourcing. Choose P92 when the design runs at the top of the temperature range and every millimetre of wall counts.

Elevated Temperature and Corrosion Performance of ASTM A335 P91 Alloy Steel Pipes

P91 is built for hot steam. It is normally used in the range of about 540–620 °C, where its creep strength beats P22 by a wide margin. Higher strength means thinner walls for the same pressure, which cuts weight, lowers thermal stress and helps plants that cycle on and off.

Its 9% chromium gives good resistance to oxidation and steam scaling, so inner and outer surfaces last well in service.

The care goes into fabrication. P91 only performs as intended when it is normalized and tempered correctly, and a weld that is under-tempered or over-heated loses strength. Preheat of about 200–250 °C and post-weld heat treatment of about 740–780 °C are typical, with hardness checked afterwards and the temperature kept below the lower critical point. Your welding procedure specification and code have the final word.

Welded joints in P91 can also suffer a type of cracking in the fine-grained zone beside the weld, known as Type IV cracking. Good procedure control and correct tempering are the best defence.

P91 is not stainless. It will rust in damp air, so keep it coated until installation, and choose stainless or duplex where corrosion, rather than heat, is the problem.

ASTM A335 P91 Alloy Steel Pipes Sizes, Dimensions and Schedules

P91 pipe is supplied from ½" up to 24" NB. Because P91 is strong, designers can often choose a lighter wall than they would need in P22, so it is worth running your wall calculation to the code before ordering. Heavier schedules up to XXS serve high-pressure headers and large main steam lines.

Where standard sizes do not fit, we can make odd OD and wall pairs to your drawing. Pipes ship in single random, double random or cut lengths, with plain or beveled ends. A coat of varnish or paint goes on before dispatch, which keeps rust off during transport and yard storage.

ASTM A335 P91 Alloy Steel Pipes Common Materials

We supply ASTM A335 P91 Alloy Steel Pipes in different material designations to meet industrial project requirements. Our product range supports applications in power plants, boilers and high-temperature piping systems. As experienced ASTM A335 P91 Alloy Steel Pipes Suppliers, we help customers select suitable materials based on their technical specifications and project needs.

ASTM / ASME: A335 P91, SA335 P91

Alloy Name: Modified 9Cr-1Mo, 9Cr-1Mo-V-Nb, Grade 91

UNS: K90901

EN / DIN: 1.4903, X10CrMoVNb9-1

Tube Equivalent: ASTM A213 T91

Plate Equivalent: ASTM A387 Grade 91

Fitting Equivalent: ASTM A234 WP91

Flange Equivalent: ASTM A182 F91

ASTM A335 P91 Alloy Steel Pipes Applications

• Supercritical Boilers: Main steam lines, superheater outlets and headers at high pressure.
• Hot Reheat Lines: Piping that carries steam back to the turbine at high temperature.
• Heat Recovery Steam Generators: High-pressure and hot reheat pipework in combined cycle plants.
• Cycling Power Plants: Lines that heat and cool often, where thinner walls cut thermal stress.
• Refinery Heaters: High-temperature furnace piping where extra strength is needed.
• Petrochemical Plants: Steam and process lines in high-temperature crackers.
• Solar Thermal Plants: Steam piping in concentrated solar power systems.
• Industrial Cogeneration: High-pressure steam lines in large captive power units.

Why Choose Us as Your ASTM A335 P91 Alloy Steel Pipes Manufacturer in India?

You should choose Sachiya Steel International because we have over 20 years of experience in the steel industry since 2005. We manufacture and export up to 100 tons of steel products monthly and serve customers in 85+ countries. Our ISO 9001:2015, ISO 14001:2015 and TÜV certifications, along with MSME registration, reflect our commitment to quality and reliable service.

We offer ASTM A335 P91 Alloy Steel Pipes in different sizes, schedules and wall thicknesses to meet your project needs. Our product range also includes P11, P22 and P92 alloy steel pipes, along with related fittings and flanges. We provide material test certificates and quality documentation to support your requirements for power plants, boilers, refineries and EPC projects.
