Stainless Steel 316 Pipes and Tubes Manufacturer in India
Stainless Steel 316 Pipes and Tubes Manufacturer in India
Sachiya Steel International is a leading Stainless Steel 316 Pipes and Tubes Manufacturer in India, serving industrial customers since 2005. Based in Vasai, near Mumbai, we manufacture seamless and welded SS 316 pipes and tubes for applications where corrosion resistance and durability matter. Our products meet applicable ASTM A312, A213, A249 and A269 specifications, depending on the product type.
SS 316 contains molybdenum, which improves its resistance to chlorides and many corrosive environments compared with SS 304. This makes it suitable for marine equipment, chemical processing, pharmaceutical plants and industrial piping systems. We hold ISO 9001:2015 and TÜV certifications and supply customers in 85+ countries. Orders include EN 10204 3.1 mill test certificates for material verification and traceability.

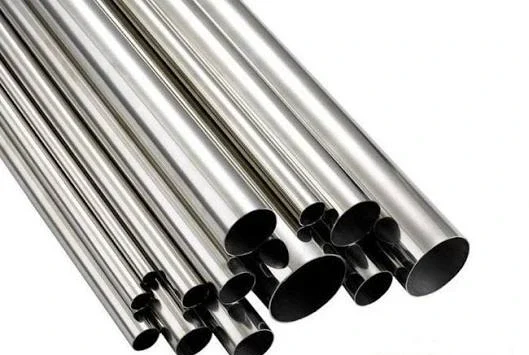

What Are Stainless Steel 316 Pipes and Tubes?
Stainless Steel 316 Pipes and Tubes are hollow products made from an austenitic stainless steel alloy containing chromium, nickel and molybdenum. The addition of molybdenum improves resistance to pitting and crevice corrosion, particularly in chloride-containing environments such as seawater and coastal conditions.
SS 316 pipes carry liquids, gases and chemicals through industrial systems, while tubes are commonly used in heat exchangers, instrumentation and equipment requiring precise dimensions. Compared with SS 304, grade 316 generally performs better in environments exposed to salts and many corrosive chemicals.
These products are widely used in marine engineering, chemical processing, pharmaceutical manufacturing, food processing and water treatment plants. Available in seamless and welded forms, Stainless Steel 316 Pipes and Tubes come in different diameters, wall thicknesses and lengths to meet specific operating and project requirements.
Stainless Steel 316 Pipes and Tubes
High-quality Stainless Steel 316 Pipes and Tubes manufactured for demanding applications across chemical, petrochemical, pharmaceutical, marine, power generation and engineering industries. Available in seamless, ERW and EFW forms with various sizes, wall thicknesses and manufacturing specifications.
Why Choose Stainless Steel 316 Pipes and Tubes?
Stainless Steel 316 Pipes and Tubes are a practical choice for industries where exposure to salt, moisture and chemicals can cause corrosion. The addition of molybdenum gives SS 316 better resistance to pitting and crevice corrosion than SS 304 in many chloride-containing environments. This helps the material perform reliably in marine, chemical processing and water treatment applications.
Key reasons to choose SS 316 include:
- Better Corrosion Resistance: Handles many corrosive environments, including those containing chlorides.
- High Durability: Offers dependable performance in demanding industrial conditions.
- Good Heat Resistance: Maintains useful properties across a range of operating temperatures.
- Easy Fabrication: Supports common forming, machining and welding processes.
- Low Maintenance: Helps reduce corrosion-related repairs when properly selected and maintained.
- Wide Industrial Use: Suitable for chemical plants, pharmaceutical equipment, marine systems and food processing.
Choosing the right SS 316 product depends on the operating environment, temperature, pressure and required dimensions.
Types of Stainless Steel 316 Pipes and Tubes
As a Stainless Steel 316 Pipes and Tubes manufacturer, we produce different pipe and tube types to suit applications involving corrosive chemicals, chloride exposure, fluid transport and precision equipment. Each type serves a specific purpose depending on pressure, dimensions, surface finish and operating conditions.
- Seamless Pipes: Manufactured without a welded seam for high-pressure systems and critical process lines.
- Welded Pipes (ERW and TIG): Formed from stainless steel strips and welded for general fluid transport and industrial piping.
- EFW Large-Bore Pipes: Fusion-welded using filler metal for applications requiring large diameters and heavy wall thicknesses.
- Seamless Tubes: Cold-drawn for close dimensional tolerances in heat exchangers and instrumentation.
- Welded Tubes: Suitable for process equipment, structural applications and handrails.
- Polished and Sanitary Tubes: Feature smooth internal and external surfaces for dairy, pharmaceutical and beverage processing.
- Square and Rectangular Tubes: Used in coastal structures, support frames and architectural projects.
Types of Pipes & Tubes
Explore our range of industrial pipes and tubes, manufactured for different applications, materials, specifications and engineering requirements.
Pipes and Tubes
→
Seamless Pipes
→
ERW Pipes
→
LSAW Pipes
→
SSAW Pipes
→
Seamless Tubes
→
Welded Pipes
→
Welded Tubes
→
Box Pipes
→
Box Tubes
→
Brass Pipes
→
Heat Exchanger Tubes
→
Boiler Tubes
→
Aluminium Pipes
→
Carbon Steel Seamless Pipes
→
Carbon Steel Pipe
→
Stainless Steel Pipe
→
Alloy Steel Pipe
→
Duplex Steel Pipe
→
Super Duplex Steel Pipe
→
Nickel Alloy Pipe
→
Copper Nickel Alloy Pipe
→Get Certified Stainless Steel 316 Pipes and Tubes at Competitive Factory Prices
Stainless Steel 316 Pipes and Tubes Specifications
| Item | Details |
|---|---|
| Material | Stainless Steel 316 / UNS S31600 / 1.4401 |
| Product forms | Seamless, ERW, EFW, TIG welded |
| Pipe size range | ⅛" NPS to 24" NPS |
| Tube OD range | 6 mm to 152.4 mm |
| Wall thickness | 0.5 mm to 25 mm |
| Delivery condition | Solution annealed, pickled or bright annealed |
| Length | Single random, double random, cut length up to 12 m |
| End finish | Plain, beveled, threaded |
| Surface finish | Pickled, 2B, bright annealed, No. 4, mirror polish |
| Tests | Chemical analysis, tensile, flattening, hydrotest or eddy current, PMI |
| Extra tests on request | IGC, ultrasonic, radiography, ferrite check |
| Documents | EN 10204 3.1 certificate, inspection reports |
Stainless Steel 316 Pipes and Tubes Standards
| Standard | Covers |
|---|---|
| ASTM A312 / ASME SA312 | Seamless and welded austenitic pipe |
| ASTM A269 | Seamless and welded tubing for general service |
| ASTM A213 / ASME SA213 | Seamless boiler and heat exchanger tubes |
| ASTM A249 / ASME SA249 | Welded boiler and heat exchanger tubes |
| ASTM A270 | Sanitary tubing |
| ASTM A358 / ASME SA358 | EFW pipe for high-temperature service |
| ASME B36.19M | Dimensions of stainless steel pipe |
| EN 10216-5 / EN 10217-7 | European seamless and welded stainless tubes |
| JIS G3459 | Japanese stainless steel pipe |
Material and Grades of Stainless Steel 316 Pipes and Tubes
The base grade is 316, and it comes in a few useful variants. We supply each one in pipe and tube form.
316: The standard molybdenum grade, with carbon up to 0.08%. It suits most chemical, marine and food applications.
316L: Low carbon, up to 0.03%. It is the preferred pick for heavily welded systems because it avoids weld decay.
316H: Higher carbon, between 0.04% and 0.10%, for better strength in hot service.
316Ti: Stabilised with titanium for long exposure to heat in the 450–850°C range.
316LN: Low carbon with added nitrogen, used when higher strength is needed alongside weldability.
Dual-certified 316/316L is also available and meets both chemistry limits in one pipe. All grades are supplied in the solution annealed condition.
Stainless Steel 316 vs 316L Pipes and Tubes: What Is the Difference?
316 and 316L share the same chromium, nickel and molybdenum. The difference lies in carbon, and that one number changes how each behaves after welding and under load.
| Point | 316 | 316L |
|---|---|---|
| Carbon | 0.08% max | 0.03% max |
| Minimum yield strength | 205 MPa | 170 MPa |
| Minimum tensile strength | 515 MPa | 485 MPa |
| Behaviour after welding | Can sensitise in thick sections | Resists weld decay |
| Best for | Higher strength, hot service | Heavy welding, corrosive fluids |
If your pipe will be welded on site and never heat treated, 316L is the safer choice. If strength at temperature matters more, go with 316 or 316H. For simple water, food or air lines with no chlorides, 304 can be enough and costs less.
Stainless Steel 316 Pipes and Tubes Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Iron (Fe) | Balance |
Stainless Steel 316 Pipes and Tubes Mechanical Properties
| Property | Value |
|---|---|
| Tensile strength | 515 MPa min |
| Yield strength (0.2%) | 205 MPa min |
| Elongation | 35% min |
| Hardness | 90 HRB max (192 HBW) |
| Density | 7.98 g/cm³ |
| Melting range | About 1375 – 1400°C |
| Elastic modulus | About 193 GPa |
Stainless Steel 316 Pipes and Tubes Size and Weight Chart
Theoretical weight is calculated as (OD − Wall) × Wall × 0.02507, giving kg per metre with dimensions in mm. Real weight can vary slightly within standard tolerances.
OD and wall are in mm. Multiply the result by the pipe or tube length to obtain the total weight.
Pipes (ASME B36.19M and B36.10M)
| NPS | OD (mm) | Sch 5S wall (mm) | Sch 5S kg/m | Sch 160 wall (mm) | Sch 160 kg/m |
|---|---|---|---|---|---|
| ½" | 21.3 | 1.65 | 0.81 | 4.78 | 1.98 |
| ¾" | 26.7 | 1.65 | 1.04 | 5.56 | 2.95 |
| 1" | 33.4 | 1.65 | 1.31 | 6.35 | 4.31 |
| 1½" | 48.3 | 1.65 | 1.93 | 7.14 | 7.37 |
| 2" | 60.3 | 1.65 | 2.43 | 8.74 | 11.30 |
| 3" | 88.9 | 2.11 | 4.59 | 11.13 | 21.70 |
| 4" | 114.3 | 2.11 | 5.93 | 13.49 | 34.09 |
| 6" | 168.3 | 2.77 | 11.50 | 18.26 | 68.68 |
| 8" | 219.1 | 2.77 | 15.02 | 23.01 | 113.12 |
Tubes (OD basis)
| OD (mm) | Wall (mm) | Weight (kg/m) |
|---|---|---|
| 8.00 | 1.00 | 0.18 |
| 10.00 | 1.00 | 0.23 |
| 14.00 | 1.50 | 0.47 |
| 16.00 | 2.00 | 0.70 |
| 20.00 | 2.00 | 0.90 |
| 28.00 | 1.50 | 1.00 |
| 32.00 | 2.50 | 1.85 |
| 42.00 | 3.00 | 2.93 |
| 60.00 | 3.00 | 4.29 |
| 89.00 | 4.00 | 8.52 |
Stainless Steel 316 Pipes and Tubes Sizes, Dimensions and Schedules
A pipe is named by its nominal size (NPS or DN), but its wall thickness depends on the schedule you pick. Higher schedule numbers mean thicker walls, more pressure capacity and more weight. The table shows how the wall changes with schedule at two common sizes.
| Schedule | Wall at 2" (mm) | Wall at 6" (mm) | Typical use |
|---|---|---|---|
| 5S | 1.65 | 2.77 | Low-pressure, weight-sensitive lines |
| 10S | 2.77 | 3.40 | General process and water service |
| 40S | 3.91 | 7.11 | Standard industrial piping |
| 80S | 5.54 | 10.97 | Higher pressure and heavy duty |
| 160 | 8.74 | 18.26 | Very high pressure |
Tubes are ordered by exact OD and wall in mm, inches or BWG. If your drawing needs a non-standard OD, a special wall or an odd cut length, we make it to your drawing.
Common Materials Supplied with Stainless Steel 316 Pipes and Tubes
Different industrial projects require different stainless steel grades depending on corrosion exposure, operating temperatures and strength requirements. Along with SS 316, we supply a range of materials to help buyers source suitable pipes and tubes for their complete project needs.
SS 304 and 304L: General-purpose stainless steel grades used in applications with moderate corrosion requirements and limited chloride exposure.
SS 321 and 347: Stabilised grades designed for applications involving sustained elevated temperatures.
SS 317L: Contains higher molybdenum content than SS 316L, providing improved resistance to certain corrosive chemicals.
SS 904L: A high-alloy stainless steel grade suitable for demanding environments involving sulphuric and phosphoric acids.
Duplex 2205: Offers higher strength and improved resistance to stress corrosion cracking compared with conventional austenitic grades.
Super Duplex 2507: Designed for demanding marine, seawater and offshore applications requiring high strength and corrosion resistance.
As stainless steel pipes and tubes suppliers, we help buyers choose suitable grades based on service conditions, material specifications and project requirements.
Applications of Stainless Steel 316 Pipes and Tubes
- Oil and Gas: Offshore platform piping, instrumentation tubing and topside process lines.
- Chemical Processing: Reactor lines, acid and solvent transfer, and storage tank connections.
- Pharmaceutical: Purified water, clean steam and process utilities.
- Marine and Shipbuilding: Seawater cooling, ballast systems, deck fittings and exhaust piping.
- Power Generation: Heat exchangers, condensers and cooling water systems.
- Food and Beverage: Dairy, brewery and juice lines that need smooth, easy-to-clean walls.
- Water Treatment: Desalination, filtration and chlorinated water distribution.
- Pulp and Paper: Bleach plant lines and chemical feed systems.
- Construction: Coastal handrails, cladding and architectural structures.
Why Choose Us as Your Stainless Steel 316 Pipes and Tubes Manufacturer in India?
Since 2005, we have been manufacturing and supplying Stainless Steel 316 Pipes and Tubes for marine, chemical, pharmaceutical, food processing and industrial piping applications. Our product range includes seamless pipes, welded pipes, EFW pipes, seamless tubes, welded tubes, polished tubes and sanitary tubes. We offer different diameters, wall thicknesses, schedules, lengths and end finishes to meet project specifications. Along with SS 316, we supply grades such as 304, 304L, 316L, 317L, 321, 347, 904L, Duplex 2205 and Super Duplex 2507.
Our quality systems are supported by ISO 9001:2015 and TÜV certifications. We provide EN 10204 3.1 mill test certificates with applicable orders, while additional inspection and documentation can be arranged according to project requirements. Our manufacturing and supply capabilities support bulk orders, customised dimensions and repeat requirements.
Based in Vasai, near Mumbai, we export stainless steel pipes and tubes to customers in 85+ countries. As an experienced Stainless Steel 316 Pipes and Tubes manufacturer, we support buyers with material traceability, export documentation, inspection coordination and packing requirements for domestic and international shipments. Our focus remains on supplying the right grade, dimensions and documentation for each application.
Countries We Export To
We export Stainless Steel 316 Pipes and Tubes to customers in 85+ countries, supporting marine, chemical processing, pharmaceutical, food processing and industrial projects across international markets.
Europe: Germany, Italy, France, Netherlands, United Kingdom, Spain, Belgium, Poland.
Middle East: UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain.
North America: USA, Canada, Mexico.
Asia-Pacific: Singapore, Malaysia, Indonesia, Thailand, Vietnam, Australia, South Korea, Japan.
Africa: South Africa, Nigeria, Egypt, Kenya, Ghana, Algeria.
South America: Brazil, Chile, Argentina, Colombia.
South Asia: Nepal, Bangladesh, Sri Lanka.
We coordinate export packing and shipment documentation according to destination and order requirements. Documents may include commercial invoices, packing lists, bills of lading and certificates of origin, where applicable. EN 10204 3.1 mill test certificates support material verification and traceability. Our export experience helps international buyers manage product specifications, inspection requirements and delivery arrangements for their projects.
FAQs
Common questions about SS 316 pipes and tubes, grade selection, standards, finishes and testing.
Why is 316 better than 304 near the sea?
316 contains molybdenum, which helps the surface resist pitting from chloride in salt air and spray. 304 lacks it and can show rust spots sooner.
When should I pick 316L instead of 316?
Pick 316L for heavily welded systems that will not be heat treated afterward. The lower carbon prevents weld decay.
Which standard should I specify for 316 pipes?
Use ASTM A312 for pipe. Use A213 or A249 for exchanger tubes, and A269 for general tubing.
How do I calculate the weight of 316 pipe?
Use (OD − Wall) × Wall × 0.02507, with both values in mm, to get kg per metre. Multiply by length for total weight.
How is 316 different from 316Ti?
316Ti has titanium added to protect against carbide formation during long heat exposure. It is chosen for hot service, while 316 suits ordinary corrosion duty.
Can you supply polished 316 tubes for hygienic use?
Yes. We offer bright annealed, No. 4 and mirror finishes for sanitary and pharma applications.
Do you make custom sizes and lengths?
Yes. Special OD and wall combinations, cut lengths and bends are made to your drawing.
Which certificates come with the order?
We supply EN 10204 3.1 mill test certificates. Third-party inspection reports are available when the purchase order asks for them.
Which tests can I request before shipment?
Chemical analysis, mechanical tests and hydrotest or eddy current are standard. PMI, IGC, ultrasonic and radiography can be added on request.
Can 316 handle hot service?
It is used up to around 800°C depending on pressure and medium. For long exposure to heat, 316H or 316Ti is usually a better choice.
